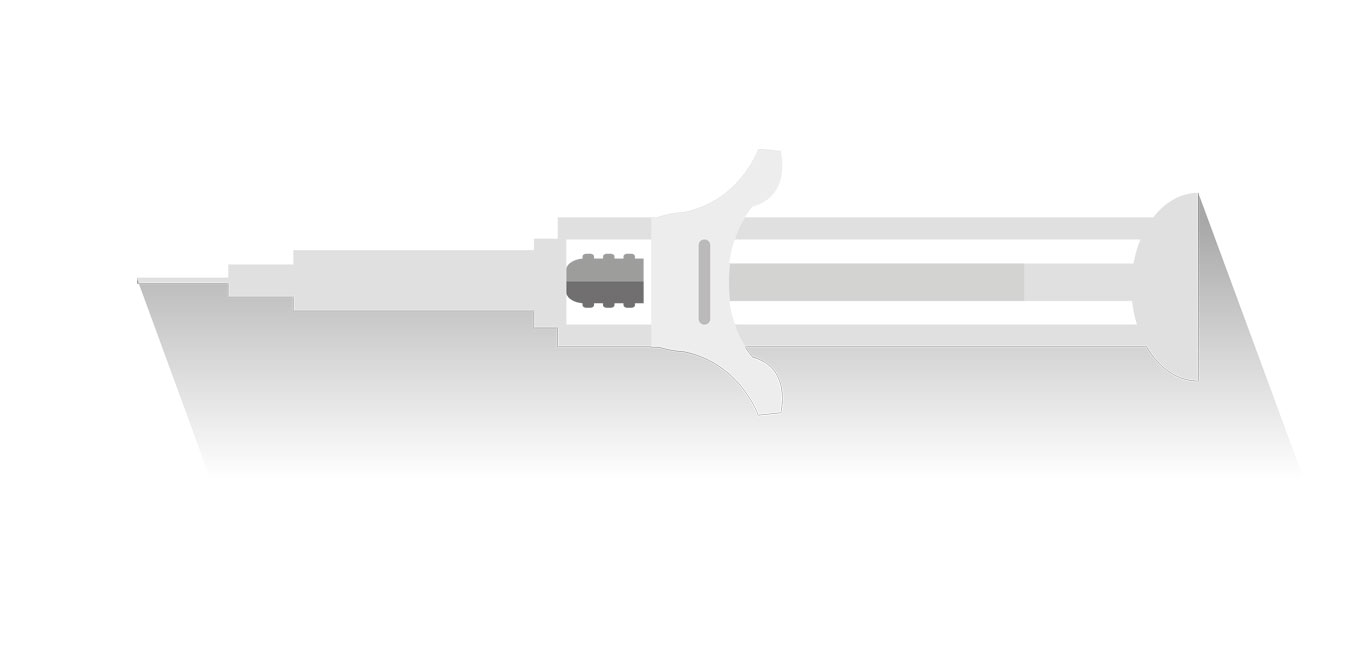

A springless, passive safety device for 1mL pre-filled syringes, designed for simple assembly and use.
- Simple 2-step final assembly
- Secure plunger prevents removal, spillage and repeat use
- User confidence with an unobscured syringe barrel for full dose visibility
- Prevention of accidental activation
- Passive needle retraction and complete shielding
- Intuitive to use – same injection technique as pre-filled syringe
|Passive needle safety||Passive retracting needle|
|Primary container/ syringe type||Standard glass cropped (cut) flange|
|Syringe size||1.0mL long staked needle|
|Needle type and gauge||TW 29G|
|Needle insertion depth (subcutaneous)||12.7mm (0.5inch) staked needle|
|Needle shield type||Rigid needle shield|
|Feasible injection angle||45°, 90°|
|Viscosity range||Up to 25cP 0.5″ 27G TW needle*
Up to 20cP 0.5″ 29G TW needle*
|Dose visibility||Unobscured syringe barrel|
|Disassembly/ Plunger removal force||144N|
|Weight – Sub assembly & safety shroud||5.4g|
|Colours standard (finger flanges)||12 including white|
|Options||Coloured & extended finger flanges|
*Dependant on temperature and injection time
Click on the +numbered icons to discover more about the device
No compromise to sterility in assembly – plunger does not touch the bung.
Large, ergonomic plunger head and a smooth, integrated finger flange, resulting in an integrated look and feel.
SIMPLE 2-STEP FINAL ASSEMBLY
Final assembly process is simple and outside of the sterile filling area.
Syringe barrel is unobscured, allowing the user to check the contents of the syringe, and to confirm the full dose has been delivered.
Passive needle retraction means that the device is safe as soon as the plunger is fully depressed.
Prevention of accidental activation e.g. in transit.
Designed to work with standard, pre-filled syringes which means no change to existing primary container and minimises training costs.
Plunger cannot detach when removing the RNS.
